Gas analysis ensures safety and efficiency in ethylene production

In ethylene production plants, it is essential to analyze process gases accurately and reliably to ensure safety and efficiency. Feed gas quality is critical to the overall process; it is also vital to monitor gas quality throughout the process to ensure a high product yield.

High-quality analysis means a high-quality end product

Failure to monitor the gas feed throughout the process can adversely affect the efficiency of the process – a less pure gas means a lower ethylene yield once the cracked gas is quenched and cleaned. There are also issues for safety and emissions if high levels of contaminants enter the wrong part of the process.

We have the solutions to make your process more efficient

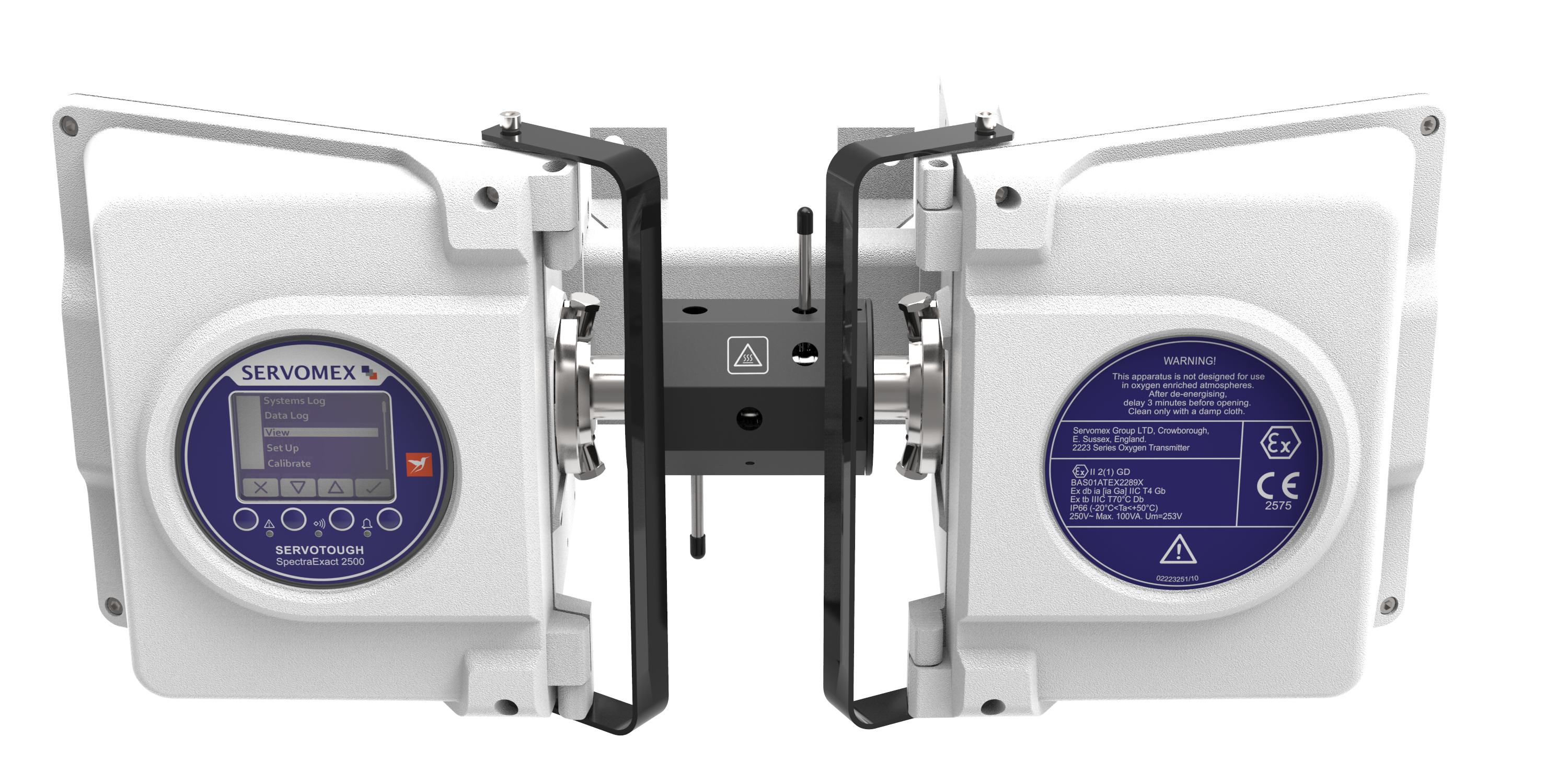

The SERVOTOUGH SpectraExact 2500 analyzer provides accurate gas quality monitoring at many points throughout the ethylene process. This allows optimization of the process reactions to ensure greater efficiency, delivering a higher yield and better-quality product. We also supply analytical solutions for safety, combustion control and emissions monitoring.

We’re trusted experts in ethylene

Our extensive experience in supplying analytical systems to the ethylene production industry means we understand your process. Our solutions are proven to deliver the results you need.

Expert team

Armed with deep applications knowledge, our experts can advise on the optimum solution for your plant conditions, supplying gas analysis that exactly matches your requirements.

Precise solutions

With a wide range of gas analysis technologies available, we’re able to deliver the most precise, correct measurement for each point in the ethylene process.

Global support

Our high-performance analyzers are supported by a network of service and support personnel, ensuring reliable performance across your process.
