SERVOTOUGH FluegasExact 2700

The FluegasExact 2700 delivers effective combustion analysis

Designed to measure O2 and COe in flue gases for improved combustion efficiency and reduced emissions, the SERVOTOUGH FluegasExact 2700 gas analyzer meets the most demanding needs of combustion efficiency applications in the power generation, incineration and process industries.

  • Unbeatable performance in the most challenging locations
  • A no-compromise solution
  • Unbeatable value over product life

Ready to buy? Here’s how it works

It’s easy to find the product you need for your application with Servomex


Get in touch to tell us what you need and the application you plan to use it for


Our expert team will help you select the right product package, ensuring you have the accessories and support to get the best performance from your analyzer


Your analyzer will be assembled in one of our state-of-the-art engineering centers and rapidly dispatched to your site

Advanced flue gas analyzer for oxygen and combustibles

Keith Warren
Keith Warren
Product Manager – Process pm Oxygen & Zirconia Combustion

Armed with an integral sampling system custom-designed for operation in some of the hottest and most extreme combustion environments, the SERVOTOUGH FluegasExact 2700 measures oxygen and combustibles in the most demanding hydrocarbon processing and power generation applications.

Designed for high temperature processes up to 1750°C (3182°F), it is ideal for use in extreme heated environments. This resilience makes it the analyzer of choice for controlling a wide range of combustion processes, including use in process heaters, utility boilers, thermal crackers, incinerators and furnaces.

Unbeatable performance in the most challenging locations

When you work in combustion analysis applications where high temperatures and particulates/dusts are occupational hazards, you need a gas analysis solution that offers rugged durability and unrivalled performance. Using a robust, fully heated stainless steel design, the SERVOTOUGH FluegasExact is certified for Zone 2/Division 2 monitoring. High temperature and flow sensor options further extend operational performance.

The FluegasExact 2700 analyzer for effective combustion analysis

A no-compromise solution

At the heart of the SERVOTOUGH FluegasExact’s exceptional performance are Servomex’s Zirconium Oxide cell for oxygen measurement and a Thick Film catalytic sensor for measuring carbon monoxide and COe (combustibles). Combined, the performance of both technologies improves process control and helps optimize excess oxygen, reducing SOx, SO3 and CO emissions and has been proven to save up to four percent of fuel costs per year. Both sensors are installed within Servomex’s custom-designed heated sensor head, which has a low-flow extractive design that can attach directly to the flue or can be remote mounted. Manufactured to the highest quality standards, this ensures exceptional performance in the toughest environments and with the minimum of maintenance.

Service team checklist

Unbeatable value over product life

The ability to reduce ongoing maintenance costs and minimize long-term ownership costs is essential, while operational benefits like simple installation requirements are highly attractive. Supported by Servomex’s global service network, which offers a complete package of support from commissioning to servicing, the FluegasExact delivers a long life of exceptional performance.

Man with Servomex System components

Let us build your gas analysis system

If you’re looking to build a gas analysis system, get in touch with the experts. Our experienced systems team provides the knowledge, engineering skills and collaborative approach to deliver the best solution for your process.

The benefits of combined combustion analysis

The FluegasExact 2700 uses trusted Zirconia technology for oxygen sensing and a sulfur-resistant combustibles sensor, all in one compact combustion gas analyzer.

Flow sensor

Unique patented Flowcube technology enables positive flow conditions to be validated, facilitating preventative maintenance and low-flow alarms.

Extractive measurement principle

The FluegasExact 2700 ensures a long sensor life by keeping the sensors outside the harsh process conditions, in a heated enclosure.

Designed for hazardous conditions

With hazard ratings for ATEX Cat. 3, IECEx Zone 2 & North America Class 1, Division 2, the FluegasExact 2700 operates effectively in demanding process environments.

Unrivalled performance

  • Uses industry-leading technologies (Zirconia cell and Thick Film Catalytic sensor) for ultra-accurate and reliable measurements
  • Manufactured by Servomex – over 70 years’ experience in pioneering gas analysis, with a global install base


  • Designed for Safe Area, Zone 2/Division 2 and ATEX Cat. 3 hazardous area rated locations
  • Robust O2 and COe analysis meets diverse application needs
  • Configurable sampling options for exact fit

Easy to use

  • Optional patented Flowcube technology provides continuous flow monitoring for preventative maintenance
  • Easy to maintain in the field

Low cost of ownership

  • Simple installation and low maintenance requirements
  • Extractive sampling design protects from harsh process conditions, extending product life
  • Long life sensing technologies for reliability and extended calibration intervals
  • Engineered design that extends maintenance intervals and permits field service

Benchmark compliance

  • ATEX Cat. 3, IECEx Zone 2 & North America Class I, Div. 2


The FluegasExact 2700 analyzer for effective combustion analysis


  • ATEX Cat. 3
  • IECEx Zone 2
  • North America Class I, Div. 2
  • CE marked and in compliance with ATEX / IECEx, EMC and WEEE Directives scope. All variants comply with BS EN 61010

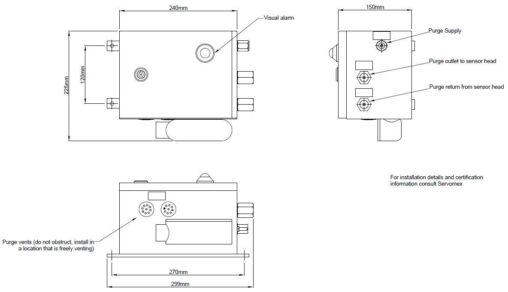

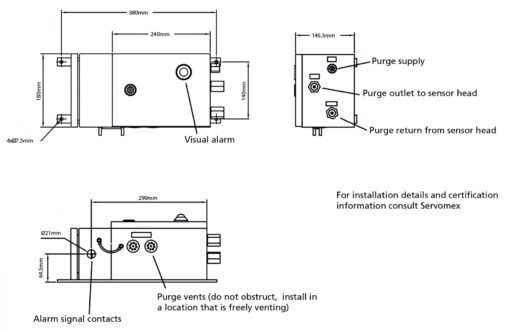

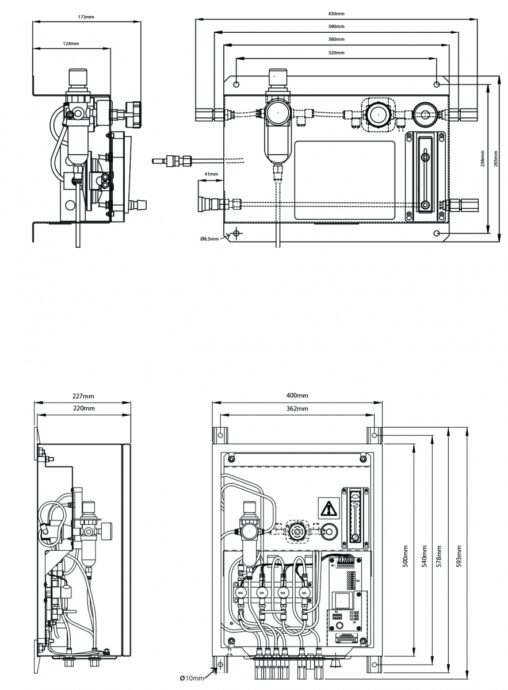

Schematics (select to expand)

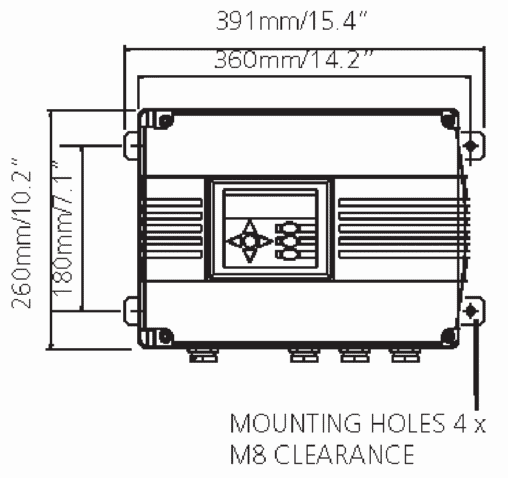

Control unit: 391 x 167 x 260mm (15.4” x 6.6” x 10.3”)

Sensor head: 301 x 330 x 256mm (11.9” x 13.0” x 10.1”)

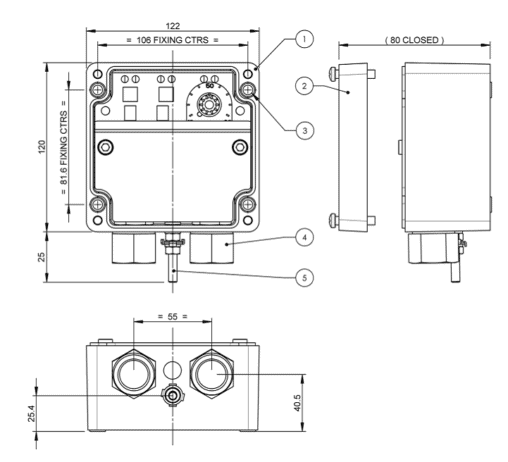

Flow alarm relay box: 120 x 120 x 80mm (4.7” x 4.7” x 3.1”)


30.5kg (67.2 lbs) (Combined weight)
