Flammable hydrocarbon samples can be measured at very low levels with our Flame Ionization Detector (FID) sensors. Based around the detection of ions formed by combustion, they are key to the sensitive, accurate measurements delivered by our SERVOPRO Chroma, FID and HFID analyzers.
FID sensors are designed to measure flammable Total Hydrocarbons (THC) down to parts-per-billion (ppb) levels.
They work by detecting ions formed in the combustion of organic compounds in a sample, producing charged molecules that cause electrical conduction between two electrodes.
The ions are attracted to a collector plate and induce a current upon hitting the plate. The FID measures this conduction and produces an output which is directly proportional to the concentration of THC in the sample.
This signal is then enhanced by a logarithmic amplifier that reduces drift and thermal noise, delivering an accurate, nondepleting measurement with 100ppb resolution.
FID can be used with Gas Chromatography techniques to provide trace gas measurements for a wide range of applications. Some carbon-containing compounds, and a number of gases of common industrial interest, fail to significantly ionize in a flame and so are either undetectable or may not be effectively measured by the FID.
Air separation units
Cylinder filling stations
Decreased drift and thermal noise
Accurate, non-depleting measurement
Resolution of 100ppb
Industrial processes where THC contamination is possible, such as air separation units, product pipelines, and cylinder filling stations.
Learn more about all our gas analyzer solutions that use this sensor technology.
The 4900 Multigas is a high-performance CEMS analyzer designed for a wide range of multi-gas measurements.
A rugged ultra-thin film Aluminum Oxide moisture sensor which measures moisture in a wide variety of gas phase process applications.
Built specifically to work in harmony with the AquaXact 1688 ultra-thin film Aluminum Oxide moisture transmitter.
The Chroma is optimized to specific background gases to ensure optimum performance for your application.
An ultra-trace Coulometric oxygen analyzer, the DF-550E is optimized for quality measurements in ultra-high-purity electronic gases.
The DF-560E provides the semiconductor industry with industry-best oxygen (O2) measurements for quality control in ultra-high-purity (UHP) electronic grade gas.
A superior quality control solution for ultra-high-purity (UHP) electronic grade gases, the DF-560E Ultra delivers an industry-best detection of 45 parts per trillion for oxygen (O2).
The DF-730 is an ultra-trace moisture analyzer that monitors the electronics-grade, high-purity hydrogen chloride (HCl) gas used in semiconductor fabs.
A trace moisture analyzer using Tunable Diode Laser (TDL) sensing technology, the DF-740 is designed to measure contaminants in UHP-grade ammonia.
The DF-745 delivers trace and ultra-trace measurements of moisture for ultra-high-purity (UHP) electronic gas checks in LED/LCD manufacturing processes.
The DF-745 SGMax is designed for the measurement of diverse gas mixtures in specialty gas blending applications.
The DF-750 is a trace/ultra-trace moisture analyzer optimized for measurements in the ultra-high-purity (UHP) gases used in 300mm semiconductor fabs.
Delivering industry-leading trace/ultra-trace moisture measurements, the DF-750 ULTRA is optimized for quality monitoring in the ultra-high-purity (UHP) gases used in 300mm semiconductor fabs.
Designed for quality control applications in UHP bulk gases, the compact DF-760E analyzer is a unique solution for the dual measurement of trace and ultra-trace moisture
Designed for industry-leading quality control measurements in UHP bulk gases, the compact DF-760E ULTRA is a unique dual-analysis solution for trace and ultra-trace moisture and oxygen.

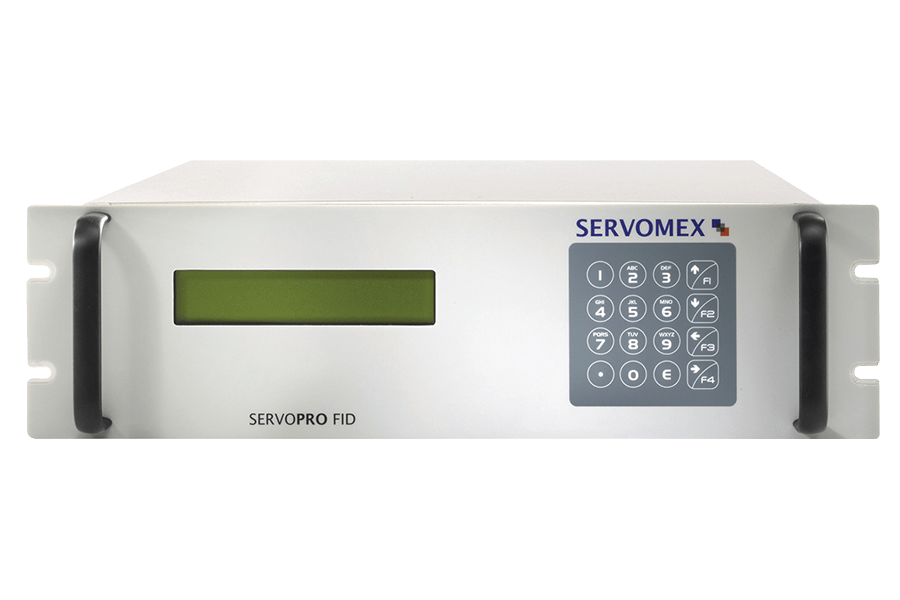

With trace analysis capability, the FID is ideal for ASU safety and quality control applications.
