One of the most flexible trace gas monitoring solutions available to the market, the Chroma is optimized to specific background gases to ensure optimum performance for your application.
Offering a non-depleting Plasma Emission Detector (PED), Flame Ionization Detector (FID) and Thermal Conductivity Detector (TCD), the Chroma analyzer is one of the most versatile gas analyzers for trace gas measurement available. Most applications will be satisfied by a single 4U rack analyzer configuration, making the Chroma a compact, cost-effective solution for continuous process control or quality monitoring.
Applications that depend on the very highest levels of product purity depend on trace analysis of exceptional sensitivity and performance. Impurities requiring measurement are both diverse in nature and found in a number of background gas streams, so high flexibility is also a must. Measurements need to be reliable, so a technology that can provide stability is essential. No matter what your application monitoring requirements, you’ll also want a solution that is easy to use and has a low lifetime cost-of-ownership. We don’t believe you should have to compromise.
The Chroma’s flexible ultra-trace analysis is delivered through a smart combination of cutting-edge sensing technology and intelligent control software. Benefiting from the fast, accurate, sensitive and selective response of Servomex’s non-depleting Plasma Emission Detector (PED) cell, Flame Ionization Detector (FID) or Thermal Conductivity (TCD) technologies, the Chroma offers sophisticated configuration and performance options which are far ahead of the competition.
Added to the Chroma’s measurement performance is its ability to provide an easy-to-use solution with added flexibility. Feature-rich software permits full device interaction remotely via Ethernet/Internet, while a full range of reporting options provide simplified statistical data analysis. The Chroma also features a user-friendly high resolution TFT color LCD for easy local configuration and interaction.
If you plan to integrate the Chroma into your existing system, or building a new one, we can help. Speak to our team before you get started to ensure the best advice and support for your project.
It’s easy to find the product you need for your application with Servomex
Get in touch to tell us what you need and the application you plan to use it for
Our expert team will help you select the right product package, ensuring you have the accessories and support to get the best performance from your analyzer
Your analyzer will be assembled in one of our state-of-the-art engineering centers and rapidly dispatched to your site
The Chroma is a mainframe analyzer fully customizable to your application, with a number of performance and cost-saving benefits.
The Chroma is optimized via sophisticated and flexible operational software that offers access to all device functions via a PC. This updated software ensures increased security and stability, with a robust, Windows 10-based operating system.
The Chroma has a fully automated, tune-to-the-application system for simplicity of use. PlasmaHC and ArgonSep technology supports the sophisticated sensor options, while a large, clear display screen makes operation easier.
For CH4/NMHC measurements, the Plasma HC system requires no FID and therefore no H2 fuel gas, reducing costs and enhancing safety.
Using highly accurate Gas Chromatography techniques, the Chroma is capable of trace measurements at part-per-million, parts-per-billion, or percentage levels in a range of background gases.
|Oxygen (O₂)||ppm, ppb|
|Argon (Ar)||ppm, ppb|
|Hydrogen (H₂)||ppm, ppb|
|Carbon monoxide (CO)||ppm, ppb|
|Nitrogen (N₂)||%, ppm, ppb|
|Methane (CH₄)||ppm, ppb|
|Carbon dioxide (CO₂)||ppm, ppb|
|Helium (He)||ppm, ppb|
|Non-methane hydrocarbons (NMHC)||ppm|

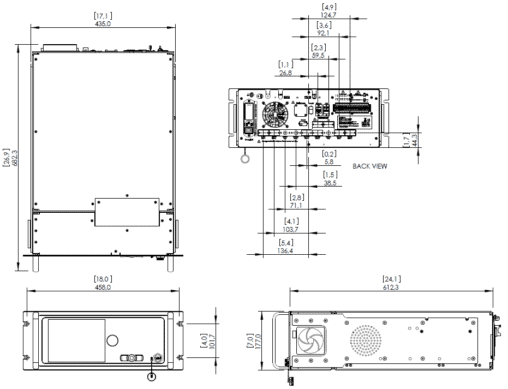

482mm (18.9”) Wide x 117mm
(4.6”) High x 600mm (23.6”) Deep
11-27kg (25-60lb) applications dependent
“For in-depth specifications you’ll want to download our technical datasheet which includes information on technology, performance, operating environment, sample conditions and compliance along with technical drawings and top-level benefits and applications.”
“The resource pack for the Chroma has all the information you need, including the product manual and brochure. Download it now for technical specifications and other data that highlights how this analyzer can enhance your process performance.”
Download the manual and brochure for the Chroma to find out more about its features and benefits. You’ll learn how to install and operate this device, and discover all the technical data you need.

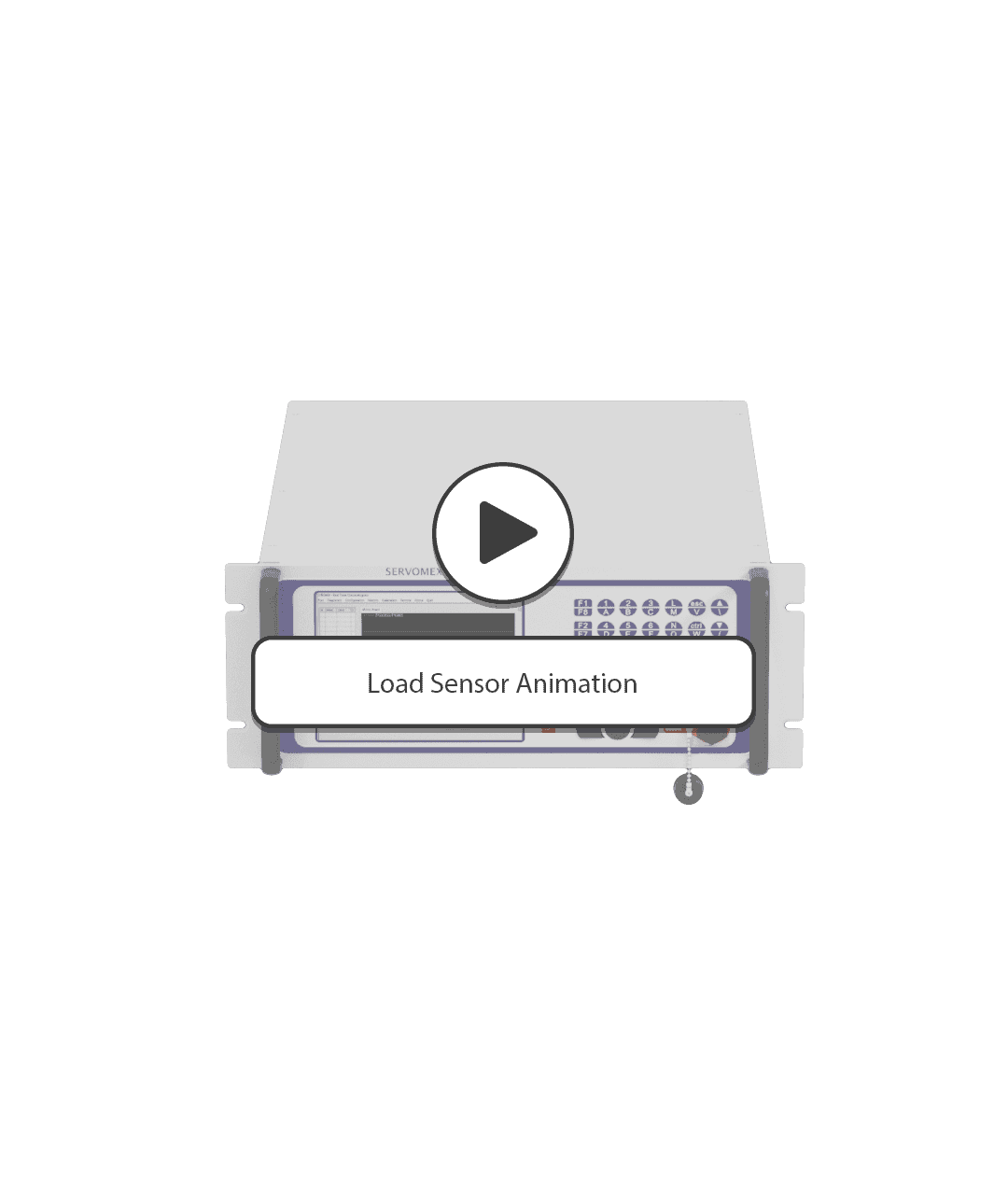

Our videos give you the chance to watch our products in action and hear from our experts. You can also see our analyzers unboxed, and find out more about our solutions for key applications
Unboxed: SERVOPRO Chroma
The new-look Chroma is unboxed by experts Chris Davis and Roberto Alzaga
The SERVOPRO Chroma
See why the Chroma is one of the most versatile gas analyzers around
A versatile gas monitor, the Chroma can be customized to provide the optimum solution for a diverse range of applications.
Medical gas production | Medical gas verification | Air separation plants | Argon purification plants | Cryogenic truck loading station | Hydrogen purification plants | Specialty gas laboratories | Semiconductor plants | Helium liquefaction plants
