Our new online purchase request service makes placing your order easy

Simply select the product variant you would like to request, choose any accessories or spares you would like included in your request & fill in your details. No card details or payment details required, one of our team will be in touch to process your request.

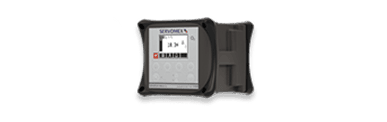

Micro i.s. 5110 Standard Variant 01

  • Industrial, 1 decimal place, Paramagnetic sensor
  • Internal sample pump
  • Internal Li-Ion Rechargeable battery and battery charger
  • Sample probe options
  • Protective carry bag and case accessory options



See Prices

Micro i.s. 5110 Standard Variant 02

  • High Accuracy, 2 decimal place, Paramagnetic sensor
  • Internal sample pump
  • Internal Li-Ion Rechargeable battery and battery charger
  • Sample probe options
  • Protective carry bag and case accessory options



See Prices

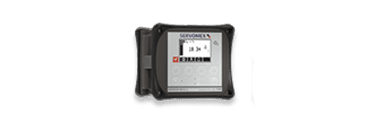

Micro i.s. 5111 Standard Variant 01

  • Industrial, 1 decimal place, Paramagnetic sensor
  • Pressure driven sample, internal AFCD
  • Internal Li-Ion Rechargeable battery and battery charger
  • Sample probe options
  • Protective carry bag and case accessory options



See Prices

Micro i.s. 5111 Standard Variant 02

  • High Accuracy, 2 decimal place, Paramagnetic sensor
  • Pressure driven sample, internal AFCD
  • Internal Li-Ion Rechargeable battery and battery charger
  • Sample probe options
  • Protective carry bag and case accessory options



See Prices

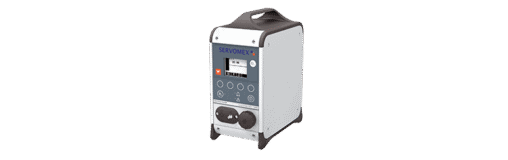

MiniMP 5200 Standard Variant 01

  • Industrial-accuracy O2 cell (accuracy ±0.1%)
  • One-decimal-place resolution
  • Automatic flow control device (AFCD)
  • Mains or battery power option
See Prices

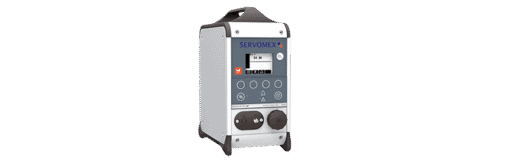

MiniMP 5200 Standard Variant 02

  • High-accuracy O2 cell (accuracy ±0.05%)
  • Two-decimal-place resolution
  • Automatic flow control device (AFCD)
  • Mains or battery power option



See Prices

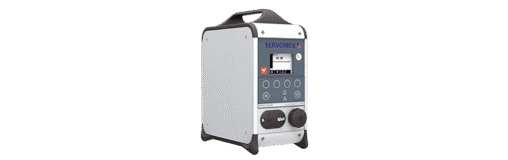

MiniMP 5200 Standard Variant 03

  • Industrial-accuracy O2 cell (accuracy ±0.1%)
  • One-decimal-place resolution
  • Internal sample pump
  • Mains or battery power option



See Prices

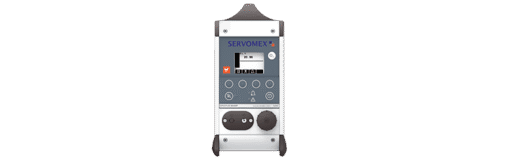

MiniMP 5200 Standard Variant 04

  • High-accuracy O2 cell (accuracy ±0.05%)
  • Two-decimal-place resolution
  • Internal sample pump
  • Mains or battery power option



See Prices

Not sure which product is right for your application?

Our expert sales team is here to help – get in touch today for tailored advice and support.

Enquire now

Compare our standard analyzer variants

Use the table below to find the right 5110 analyzer variant for your application.

CONFIGURATION
5110 Micro i.s. VariantsWe have two pre-configured 5110 (internal pump) builds that cover the most common chosen option configurations to enable a quick turnaround from specification to delivery.
Micro i.s. 5110 (Pumped) Portable Analyzer
Product CertificationSV01SV02UC
ATEX Cat1(Zone0) / IECEx / cus
Supply power Lithium ion batteries providing 8-36 hours use, depending on sensor selectionsSV01SV02UC
Rechargeable battery UK
Rechargeable battery US
Rechargeable battery Europe
MeasurementSV01SV02UC
Oxygen, Industrial Accuracy
Oxygen, High Accuracy
Sampling systemSV01SV02UC
Internal pump with user configurable timer
Inlet couplerSV01SV02UC
1/4" Barb (standard)
1/8" NPT thread
User manualSV01SV02UC
English
Micro i.s. 5110 (Pumped) Portable AnalyzerSV01SV02UC
Product CertificationATEX Cat1(Zone0) / IECEx / cus
Supply power Lithium ion batteries providing 8-36 hours use, depending on sensor selectionsRechargeable battery UK
Rechargeable battery US
Rechargeable battery Europe
MeasurementOxygen, Industrial Accuracy
Oxygen, High Accuracy
Sampling systemInternal pump with user configurable timer
Inlet coupler1/4" Barb (standard)
1/8" NPT thread
User manualEnglish
  • Option selectable
  • Option not available in that variant
  • Pre-selected option

* Supplied by default if sample conditioning kit is selected

++Option applicable if Probe holder option is selected

Use the table below to find the right 5111 analyzer variant for your application.

CONFIGURATION
5111 Micro i.s. VariantsWe have two pre-configured 5111 (AFCD) builds that cover the most common chosen option configurations to enable a quick turnaround from specification to delivery.
Micro i.s. 5111 (AFCD) Portable Analyzer
Product CertificationSV01SV02UC
ATEX Cat1(Zone0) / IECEx / cus
Supply power Lithium ion batteries providing 8-36 hours use, depending on sensor selectionsSV01SV02UC
Rechargeable battery UK
Rechargeable battery US
Rechargeable battery Europe
MeasurementSV01SV02UC
Oxygen, Industrial Accuracy
Oxygen, High Accuracy
Sampling systemSV01SV02UC
Internal pump with user configurable timer
Inlet couplerSV01SV02UC
1/4" Barb (standard)
1/8" NPT thread
User manualSV01SV02UC
English
Micro i.s. 5111 (AFCD) Portable AnalyzerSV01SV02UC
Product CertificationATEX Cat1(Zone0) / IECEx / cus
Supply power Lithium ion batteries providing 8-36 hours use, depending on sensor selectionsRechargeable battery UK
Rechargeable battery US
Rechargeable battery Europe
MeasurementOxygen, Industrial Accuracy
Oxygen, High Accuracy
Sampling systemInternal pump with user configurable timer
Inlet coupler1/4" Barb (standard)
1/8" NPT thread
User manualEnglish
  • Option selectable
  • Option not available in that variant
  • Pre-selected option

++Option applicable if Probe holder option is selected

Use the table below to find the right 5200 analyzer variant for your application.

CONFIGURATION
5200 MiniMP variantsThere are four standard variants (SV01 industrial O₂ with automatic flow control device (AFCD), SV02 high accuracy with AFCD, SV03, Industrial with internal pump, and SV04 high accuracy with internal pump). These cover a basic set up to enable a quick turnaround from specification to delivery.
MiniMP VARIANTS
Measurement 1SV01 SV02 SV03 SV04 UC
Industrial PM cell
High Accuracy PM cell
Infrared CO₂
Measurement 2SV01 SV02 SV03 SV04 UC
Industrial PM cell
High Accuracy PM cell
Infrared CO₂
mA output (RS 232 output included as standard)SV01 SV02 SV03 SV04 UC
None
Single
Dual
Inlet couplerSV01 SV02 SV03 SV04 UC
5mm OD stub with "QuickConnect" barb fitting for 6.3mm (1/4") ID tube
1/8" NPT fitting adaptor
Sampling systemSV01 SV02 SV03 SV04 UC
AFCD
0.71 (0.02 cu.ft)/min internal pump with user configurable timer
Exhaust/vent outletSV01 SV02 SV03 SV04 UC
Front (pump version only)
Rear
12/24V vehicle power adaptorSV01 SV02 SV03 SV04 UC
Supplied
Side panel accessoriesSV01 SV02 SV03 SV04 UC
Unvalved flowmeter 1-10 I min-1 (0.035-0.35 f3 min-1) (AFCD only)
Valved flowmeter 1-10 I min-1 (0.035-0.35 ft3 min-1) (pump version only)
Sample conditioning panel, Silica gel drier and catchpot fitted to side of analyzer (pump version only)
Transport caseSV01 SV02 SV03 SV04 UC
2 years sparesSV01 SV02 SV03 SV04 UC
Recommended spares for two years operation, comprising replacement filters (5) and filter cap 'O' ring
MiniMP VARIANTSSV01 SV02 SV03 SV04 UC
Measurement 1Industrial PM cell
High Accuracy PM cell
Infrared CO₂
Measurement 2Industrial PM cell
High Accuracy PM cell
Infrared CO₂
mA output (RS 232 output included as standard)None
Single
Dual
Inlet coupler5mm OD stub with "QuickConnect" barb fitting for 6.3mm (1/4") ID tube
1/8" NPT fitting adaptor
Sampling systemAFCD
0.71 (0.02 cu.ft)/min internal pump with user configurable timer
Exhaust/vent outletFront (pump version only)
Rear
12/24V vehicle power adaptorSupplied
Side panel accessoriesUnvalved flowmeter 1-10 I min-1 (0.035-0.35 f3 min-1) (AFCD only)
Valved flowmeter 1-10 I min-1 (0.035-0.35 ft3 min-1) (pump version only)
Sample conditioning panel, Silica gel drier and catchpot fitted to side of analyzer (pump version only)
Transport case
2 years sparesRecommended spares for two years operation, comprising replacement filters (5) and filter cap 'O' ring
  • Option selectable
  • Option not available in that variant
  • Pre-selected option

Download the SERVOFLEX MiniMP 5200 brochure for full specifications

The benefits of benchtop analysis

With a Li-ion battery for true portability, the MiniMP offers reliable O₂ and CO₂ monitoring for CEMS, industrial gas and medical gas applications.

Modern Medical Research Laboratory: Two Scientists Use Computer with Screen Showing DNA Gene Analysis, Specialists Discuss Innovative Technology. Advanced Scientific Lab for Medicine, Biotechnology

Meets medical gas requirements

The SERVOFLEX MiniMP 5200 complies with US FDA standards for verification of medical O₂ and N₂, and European Pharmacopeia requirements for assay of medical O₂.

Medical Gas analysis

Ideal for CEMS verification

Certified to TUV EN15267/EN14181 (QAL 1), the MiniMP is a unique portable analyzer for reference O₂ analysis in CEMS.

Non-depleting sensors

The analyzer utilizes Servomex’s digital Paramagnetic and Infrared sensing technologies for accurate, long-life operation with minimal calibration.

Not sure which product is right for your application?

Our expert sales team is here to help – get in touch today for tailored advice and support.
