SERVOPRO DF high purity

The DF-560E ULTRA delivers industry-leading ultra-trace oxygen detection

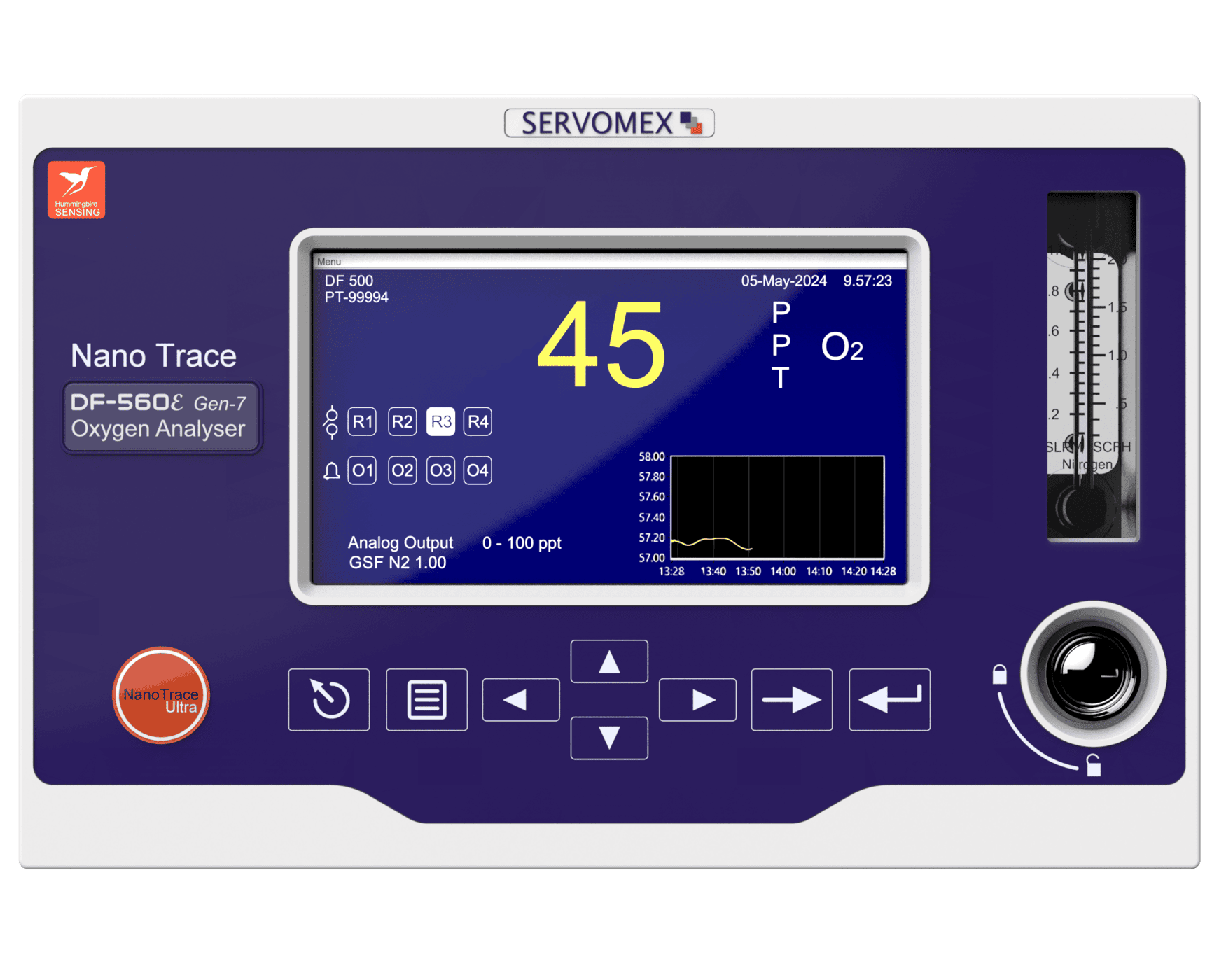

Now the exceptional Lower Detection Limit (LDL) of 45 parts-per-trillion (ppt) of the DF-560E ULTRA is displayed on the front screen. Once the DF-560E ULTRA is measuring below 1 ppb the units automatically convert to ppt providing the semiconductor industry with industry-best oxygen (O2) measurements for quality control in ultra-high-purity (UHP) electronic grade gas.

Ultra-trace oxygen measurements at the lowest levels

Designed to measure ultra-trace O2 to the very lowest levels, the DF-560E ULTRA delivers the semiconductor industry an industry-leading 45ppt LDL. Our new DF-560E ULTRA firmware will automatically change units as it monitors your sample gas down to the ppt levels. Flexible and adaptable, it is able to monitor O2 in multiple background gases while logging data in a variety of formats.

The DF-560E ULTRA negates the effects of upset-prone applications, thanks to Servomex’s high-stability Coulometric sensing technology, which delivers a fast speed of response in the presence of sample and flow rate changes.

Douglas Barth
Senior Global Product Manager

Designed for ease of use

Ideal for semiconductor fabs and analytical carts, the DF-560E ULTRA is optimized for ease of use and portability. Operation is made via the front panel or digital communications, while hand-carry options make it easy to transport.

The DF-560E ULTRA also reduces operational costs through its non-depleting, factory-calibrated Coulometric technology, providing cost-effective setup and configuration. The only ongoing maintenance requirement is an annual span calibration, with no programmable cell replacement needed.

High stability coulometric trace and percent measurements

When you require the measurement of ultra-trace oxygen as a contaminant, either for quality control or leak detection purposes, you need a gas analyzer that delivers performance, stability and reliability. The lowest LDL is essential, as is the ability to carry out consistent, high stability measurements in upset prone applications, where sample and flow rate fluctuations can occur. Adaptable configuration options that can measure multiple background gases and flexible portability is also needed, as is comprehensive datalogging and graphical records. No matter what your application needs, you’ll want an analyzer that can reduce your ongoing costs and provide operational efficiencies, and we don’t believe you should have to compromise.

A no-compromise solution

The DF-560E ULTRA delivers oxygen measurement to the very lowest levels, delivering users an exceptional LDL of 45ppt. This industry-leading performance is augmented by a variety of extended operational capabilities. Automated maintenance executes automatic zero and span calibrations on a scheduled basis, or executes scheduled automatic checks and notifies users when calibration is needed. An Automatic Maintenance Log records water additions, sensor data, and calibration activity to ensure ISO record-keeping requirements, while Automated Data Logging builds four-day and thirty-day graphical records of analyzer readings.

Simple maintenance and reduced ongoing costs

The DF-560E ULTRA offers an attractive cost reduction over product life, thanks to its pre-calibrated, long-life sensor that comes with a 5 year warranty. The DF-560E ULTRA requires only an annual span calibration thereafter, with no programmable cell replacement requirement. Automated maintenance logging is also provided and the DF-560E ULTRA is available with a choice of calibration options; automatic zero and span on a scheduled basis and notifications of a need for calibration; and a manual calibration system – compactly integrated on the rear of the panel, permitting enhanced device portability.

Integrate our expertise into your system

If you’re looking to include the DF-560E ULTRA in your new or existing system, our expert team can help. For advice, project management and high-quality engineering, get in touch today to find out more.

Ready to buy? Here’s how it works

It’s easy to find the product you need for your application with Servomex

Enquiry

Get in touch to tell us what you need and the application you plan to use it for

Consultation

Our expert team will help you select the right product package, ensuring you have the accessories and support to get the best performance from your analyzer

Fulfilment

Your analyzer will be assembled in one of our state-of-the-art engineering centers and rapidly dispatched to your site

Industry-leading benefits

The DF-560E ULTRA is a flexible, adaptable solution for ultra-trace oxygen measurements in UHP gases.

Unrivaled performance

The DF-560E ULTRA’s LDL of 45ppt O2 is the lowest level available to the semiconductor industry and now the display reading will automatically change from ppb to ppt.

Ideal for upset-prone applications

The highly stable Coulometric sensor used by the DF-560E ULTRA compensates for sample and flow rate fluctuations, providing consistent, high-stability measurements.

Extended operational capabilities

Automated maintenance performs zero and span calibrations on a scheduled basis, or executes scheduled automatic checks and notifies users when calibration is needed.

Unrivaled performance

  • Industry-leading 45ppt Lower Detection Limit (LDL)
  • Units automatically follow from ppb to ppt
  • Uses industry-leading Coulometric E-sensor technology
  • Fast speed of response to quickly alert operators of out-of-specification gas conditions
  • Broad detection range: 0-1ppb to 0-20ppm

Flexible

  • Suitable for use with H2, He, CH4, CO, N2, Ar and a host of fluorocarbons and slightly acidic gases
  • Sensor compensates for sample and flow rate fluctuations – ideal for upset prone applications
  • Battery backup optional
  • Standard with our Gas Scale Factor (GSF) feature which includes 18 different sample gases conversion factors

Easy to use

  • On-board calibration system option gives both flexibility and portability
  • Optional calibration system is compact enough to allow easy integration into rack or panel mounted applications
  • Operable via front panel or digital communication options
  • Comprehensive automated datalogging with 4 day and 30 day graphical reading records

Low cost of ownership

  • Factory calibrated sensors for simplified commissioning
  • Non-depleting Coulometric sensor with five year warranty
  • Requires only an annual span calibration and quarterly addition of RSA
  • Expensive purifier replacements not required

Benchmark compliance

  • IEC 61010-1
  • Overvoltage Category II, Pollution Degree 2
  • EU EMC Directive
  • EU Low Voltage Directive

Gases sensed, measurements and technologies

Using our non-depleting, highly stable Coulometric O2 sensor, the DF-560E ULTRA monitors the lowest levels of O2 in multiple background gases.

Gas Measurement
Oxygen (O₂)ppt, ppm, ppb

Technologies

Coulometric

Certificates

  • IEC 61010-1
  • Overvoltage Category II, Pollution Degree 2
  • EU EMC Directive
  • EU Low Voltage Directive

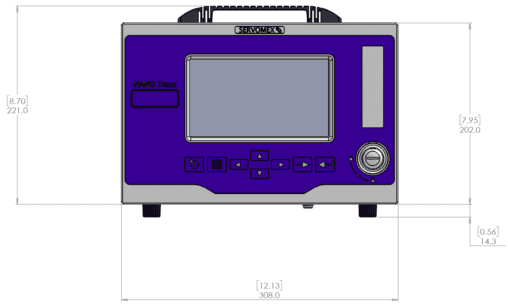

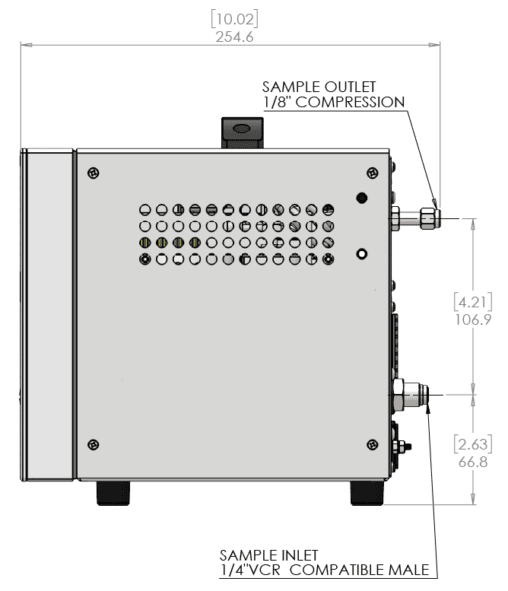

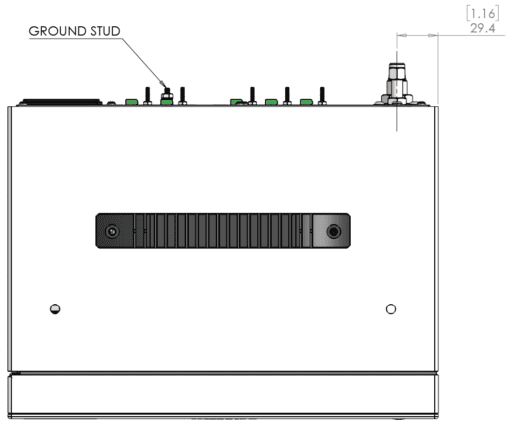

Schematics (select to expand)

Size

309mm (12.1”) Wide x 203 (7.9”) High x 253mm (9.9”) Deep

Weight

8.2kg (18lbs)

Get the detailed specifications

“For in-depth specifications you’ll want to download our technical datasheet which includes information on technology, performance, operating environment, sample conditions and compliance along with technical drawings and top-level benefits and applications.”

Douglas Barth
Senior Global Product Manager

Download all the DF-560E ULTRA information you need

“We’ve compiled a complete resource pack full of information about the DF-560E ULTRA, all in one easy download. Get it now to learn about the benefits and technical specifications of the industry-leading ultra-trace oxygen analyzer.”

Douglas Barth
Senior Global Product Manager

Manuals and brochures

Want more information about the features and advantages of the DF-560E ULTRA? Download the product brochure now.

DF-560E ULTRA instruction manual

DF-560E ULTRA instruction manual

ES Semicon Magazine Issue 25

ES Semicon Magazine Issue 25

DF-560E ULTRA Product brochure and technical data

DF-560E ULTRA Product brochure and technical data

GC-PED vs APIMS expert paper

GC-PED vs APIMS expert paper

See for yourself

Our videos give you the chance to watch our products in action and hear from our experts. You can also see our analyzers unboxed, and find out more about our solutions for key applications

Total UHP Solutions

See our unique single-supplier solution for UHP gases

Typical applications

Designed specifically for semiconductor fabs and analytical carts, the DF-560E ULTRA delivers ultra-trace O2 measurements in UHP electronic-grade gas.

Quality control checks for electronics grade gases | Leak detection for electronics grade gases

UHP Gases / Semiconductors

A comprehensive systems solution

Learn more
