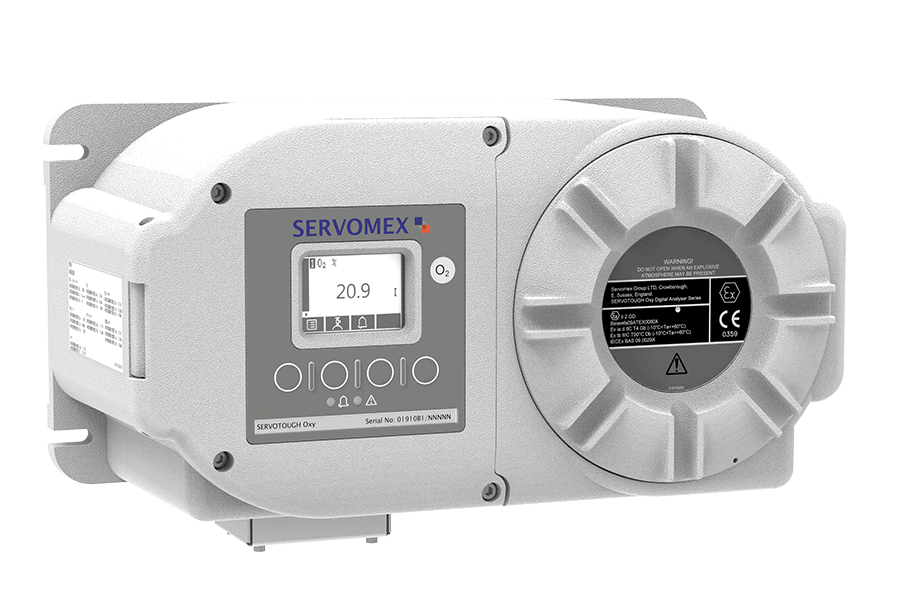

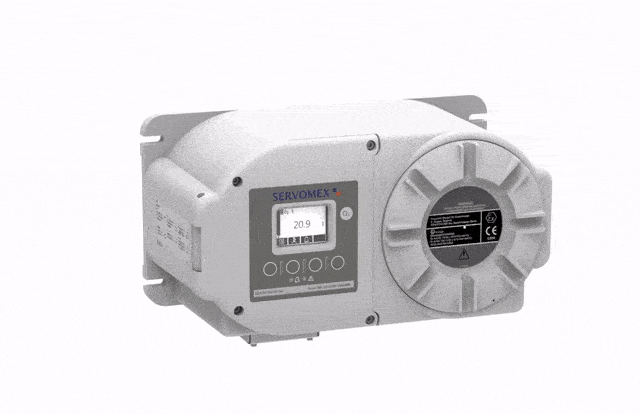

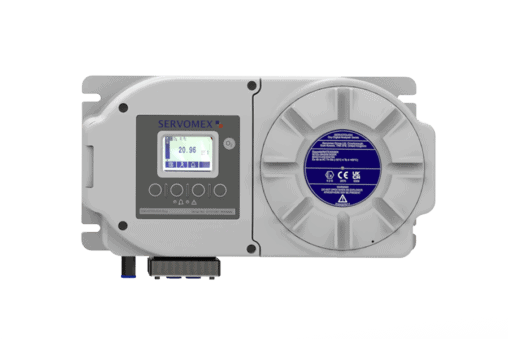

SERVOTOUGH Oxy 1900 is a digital oxygen analyzer suitable for use in hazardous areas
Pre-configured standard models are available, or the analyzer can be customized based on our available configuration options.
The Oxy 1900 oxygen (O2) gas analyzer offers industry-standard features along with revolutionary value-added options, setting new standards in flexibility, stability, and reliability in a single, cost-effective unit.
Safe for use in the most hazardous areas Low maintenance and low cost of ownership High-performance monitoring with unique features
Servomex makes it easy to find the products you need for your application
Please contact us and tell us about your needs and the applications you plan to use it for.
Our team of experts will help you choose the right package, ensuring you have the accessories and support to get the best performance from your analyzer.
Your analyzer will be assembled in one of our state-of-the-art engineering centers and quickly shipped to your site
Users can also configure the Oxy 1900 with build options not covered by the standard model.
Basic configuration for entry-level process oxygen measurement requirements.
Mid-level configuration suitable for typical process control-level oxygen measurement requirements
Complete configuration for complete process oxygen measurement requirements, equipped with all available measurement options.
Other analysis configurations not covered by one of the 3 standard variants above include:
The Oxy 1900 sets the standard in oxygen analysis, offering a feature-rich solution designed to meet the monitoring needs of the most challenging applications.
At the heart of the Oxy 1900 is Servomex’s patented paramagnetic oxygen sensor, which provides highly reliable, accurate and stable oxygen percentage measurement. Using industry-leading patented paramagnetic technology, it delivers stable, non-depleting measurement – ensuring a long ownership life and low maintenance costs.
The Oxy 1900 combines enhanced safety design with ease of use and installation to create an analytical solution that significantly reduces costs over the product lifecycle. It offers clever value-added features including a heated sample chamber for unmatched measurement stability and a simplified sample conditioning system.
When you’re working with potentially hazardous, hazardous area applications, you need an O2 analysis solution that unquestionably delivers baseline safety compliance and complete reliability; product quality and plant safety depend on the equipment you integrate. Oxy carries IECEx/ATEX/UKEX certifications for Zone 1 and cCSAus C1, D1 for North America, and is SIL2 (Route 1H) compliant hardware, ensuring reliable, dependable reliability in hazardous area locations.
By utilizing patented paramagnetic sensing technology, the Oxy 1900 delivers stable, accurate measurements with minimal calibration. Remote device interaction via digital communication options helps further reduce operating costs.
The Oxy 1900 introduces unique options that provide unmatched flexibility, operational performance, and reduced costs. An innovative heated sample diaphragm, combined with a fully heated sample chamber, reduces the need for gas conditioning systems for samples with dew points up to 50°C/122°F and provides excellent measurement stability. A unique FlowCube sensor ensures low-flow indication during normal operation. An integrated pressure compensation system compensates for sample pressure variations, enabling tighter process control.
If you’re looking to integrate the Oxy 1900 into your gas analysis system, we can help. Servomex can manage your project from design to installation, leveraging the expertise built into every system. Contact us to find out more.

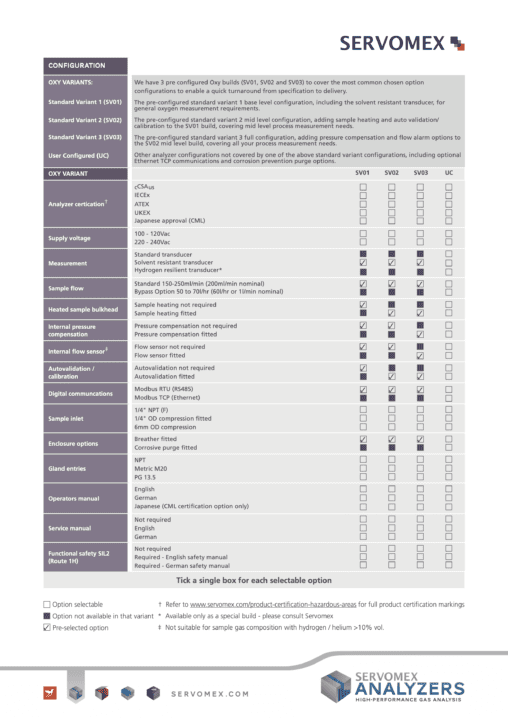

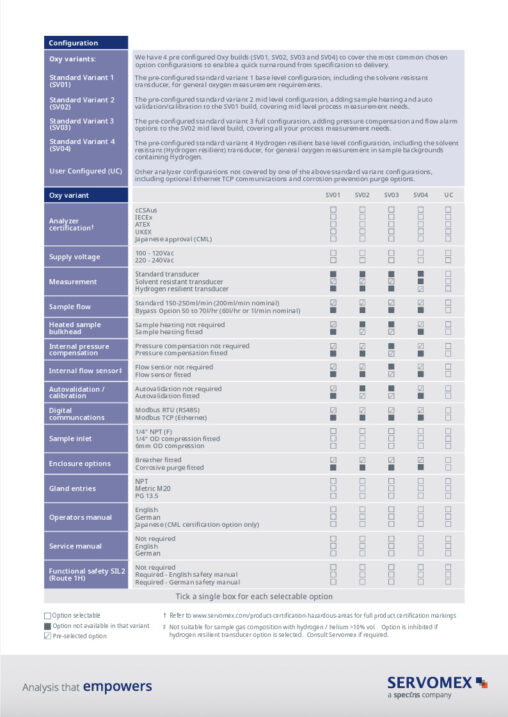

Compare our standard analyzer models
Use the table below to find the right analyzer model for your application.

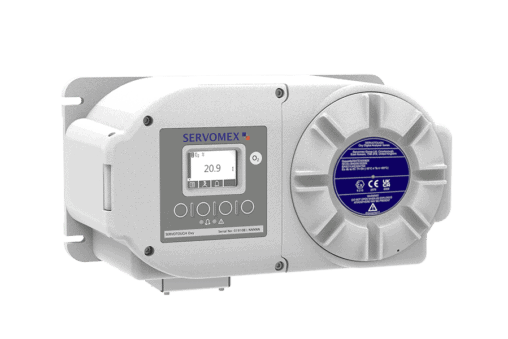

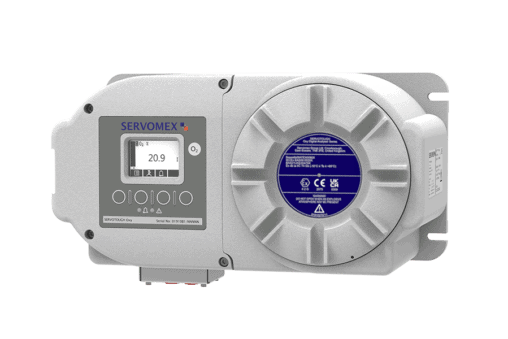

Designed for use in hazardous area locations, the Oxy 1900 offers advantages in safety, performance, and maintenance costs.
The heated sample cell provides improved measurement performance for the Oxy 1900, while the optional sample heater offers simplified sample conditioning system design.
Servomex’s FlowCube technology ensures greater operational safety for the Oxy 1900.
The Oxy 1900 can be used in safe areas of Zone 1/Division 1 hazardous locations. The safety system hardware complies with SIL 2 (Route 1H) standards.
Unmatched performance
Flexible
Low cost of ownership
Easy to use
Benchmark compliance
CE marking meets:
EU EMC Directive
EU RoHS Directive
The Oxy 1900 uses non-depleting paramagnetic sensing technology to provide accurate and sensitive digital measurement of oxygen.
Technologies
*(+14°F ≤ Ta ≤ +140°F) **(+14°F ≤ Ta ≤ +122°F).
448 mm (17.6 in) wide x 235 mm (9.2 in) high x 227 mm (8.9 in) deep
Nominal 26 kg (57 lb)
“For detailed specifications, you’ll want to download our technical datasheet, which includes information on technology, performance, operating environment, sample conditions, and regulatory compliance, as well as technical drawings and top-level benefits and applications.”
“Get all the information you need about the features, benefits, and technical performance of the Oxy 1900 analyzer. We’ve packed it all into one easy download.”
Our videos give you the opportunity to see our products in action and hear from our experts. You can also see our analyzers unboxed and learn more about our solutions for key applications.
Fluegas 2700 视频
我们的产品视频专注于氧气和可燃物组合分析仪
Gen-7 预告片
Gen-7 升级视频
Propylene Oxide Application Video 中文字幕版
Designed for use in hazardous areas, the Oxy 1900 provides reliable paramagnetic oxygen measurement for a wide range of industrial applications, including process control, feed purity, safety-critical oxidation, vapor recovery, and flare stack analysis.
